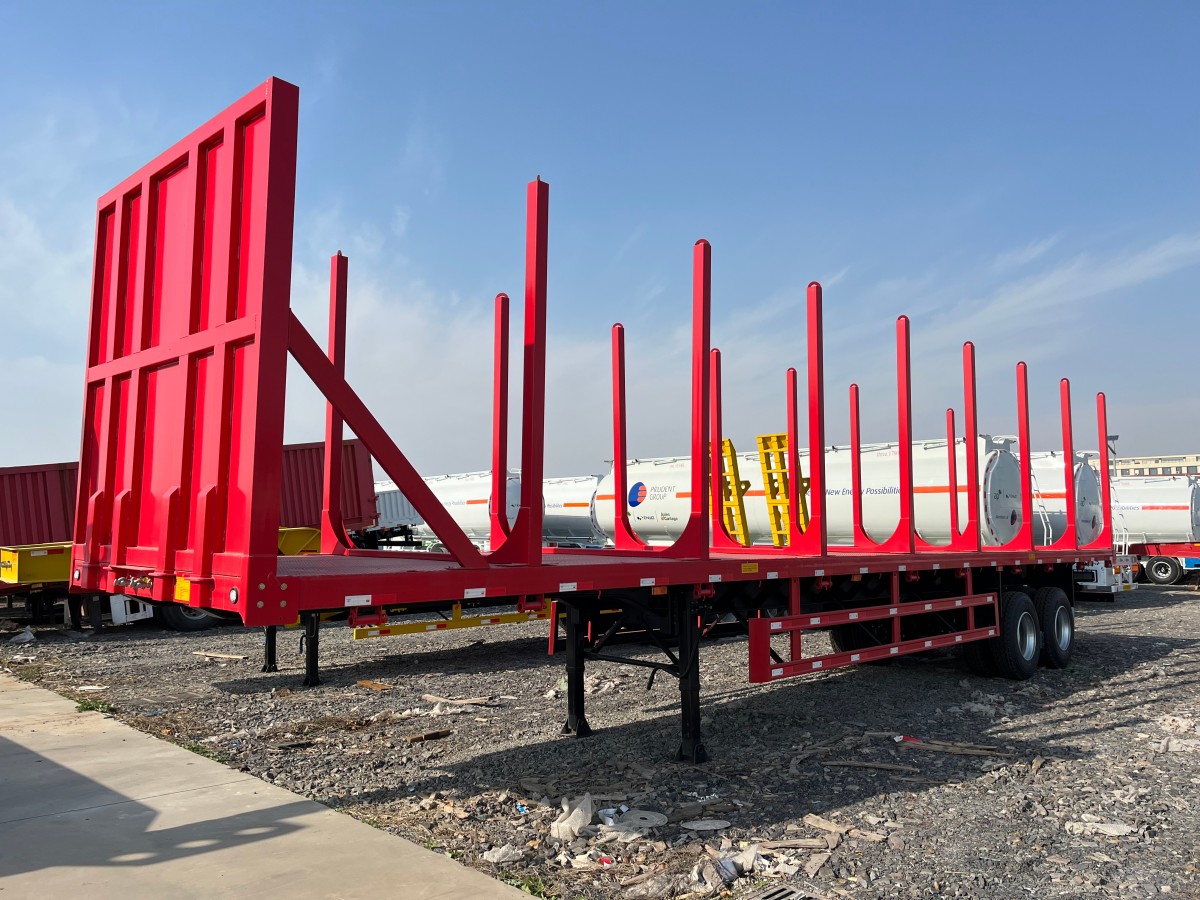

Logging Timber Trailer
Logging timber trailer — reinforced frame, hydraulic stanchions, up to 60 ton.
Share with friends
Contact Us
Logging timber semi trailer (原木车) manufactured by Shandong Shuyue Vehicle. Heavy-duty reinforced frame for transporting raw logs and lumber. Hydraulic stanchion posts and optional front-mounted log loader.
Technical Specifications
| Parameter | Specification |
|---|---|
| Overall Dimension (mm) | 13000 × 2800 × 2200 (customizable) |
| Loading Capacity | 40T, 50T, 60T |
| Frame Type | Reinforced heavy-duty gooseneck frame |
| Loading Method | Front-mounted log loader (Palfinger / Epsilon optional) |
| Stanchion Posts | 4 – 6 hydraulic stanchion posts, removable |
| Cross Beam | Reinforced I-beam, 250mm height |
| Loading Area Length | 8000 – 10000mm |
| Main Beam | Q345B high-strength steel, 12mm thickness |
| Axle | 13T / 16T / 20T BPW or FUWA, 3 / 4 axles |
| Tire | 11.00R20 / 12R22.5, 12 pieces |
| Rim | 8.25-22.5 / 9.00-22.5 |
| Suspension | Mechanical / Air suspension |
| Leaf Spring | Heavy-duty 13 layers |
| King Pin | 90# JOST |
| Landing Gear | 28T JOST |
| Brake System | Dual-line air brake, WABCO |
| Brake Chamber | 6 sets |
| Electrical System | 24V, 7-pin socket, LED |
| Tool Box | 1 standard steel toolbox |
| Painting | Sand-blasting, primer + 2 finish coats, color optional |
Application: Raw log transport from forest to sawmill, lumber delivery, large timber, pole transport for power line construction.
Why Choose Shandong Shuyue Vehicle?
- 20+ years of trailer manufacturing experience in Liangshan — China’s largest special vehicle industry cluster
- Direct factory pricing — FOB Qingdao / Lianyungang / Tianjin
- Custom specifications available (dimensions, axles, capacity, color)
- CE / ISO9001 / GCC certification ready
- OEM / ODM service for distributors and fleet operators
- Pre-shipment inspection by SGS / BV / customer-appointed third party
- Spare parts supply and after-sales service
Order Process
- Inquiry with specifications (dimensions, payload, axle count, material)
- Quotation with technical drawing within 12 hours
- 30% deposit by T/T
- Production (25–35 days depending on model and quantity)
- Pre-shipment inspection and balance payment
- Shipping via FCL / Bulk / Ro-Ro to your destination port
