Side Tipper Semi Trailer

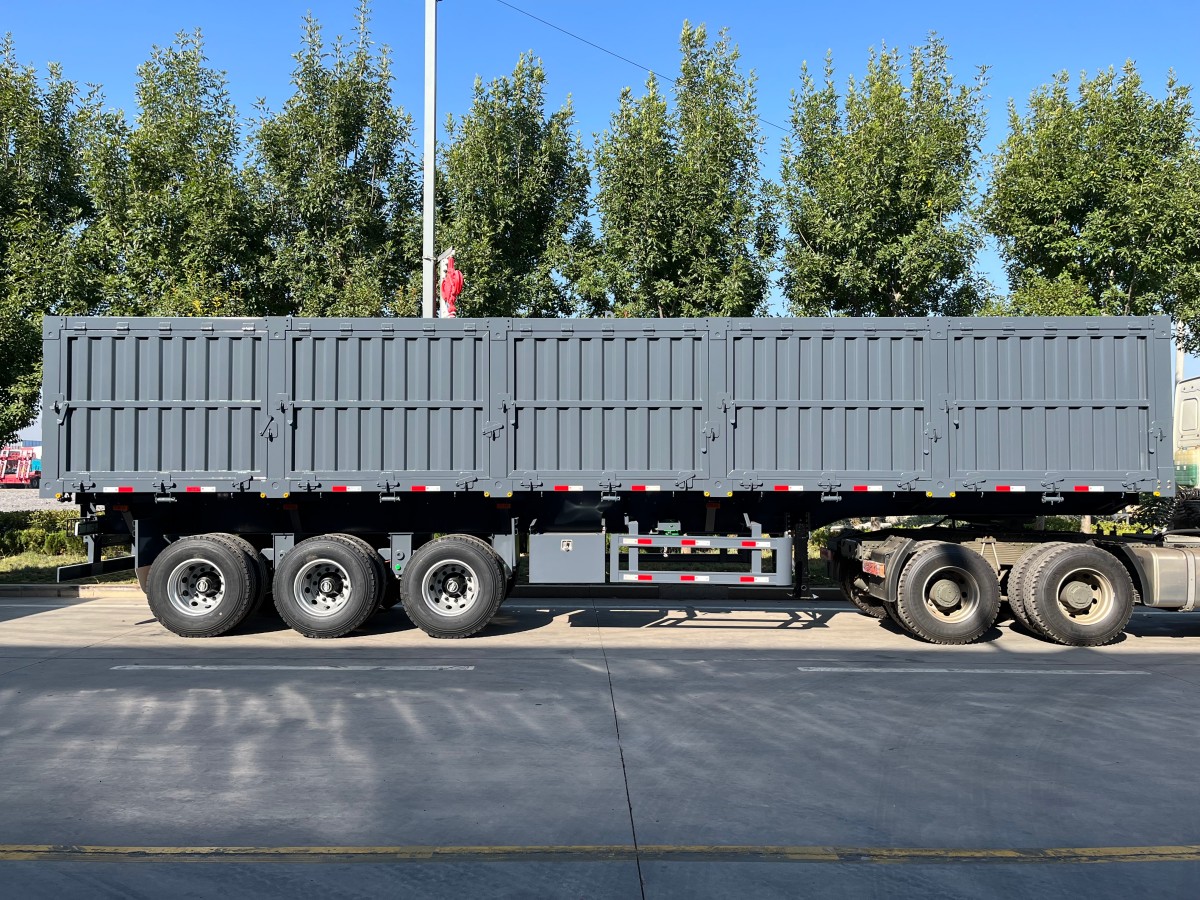

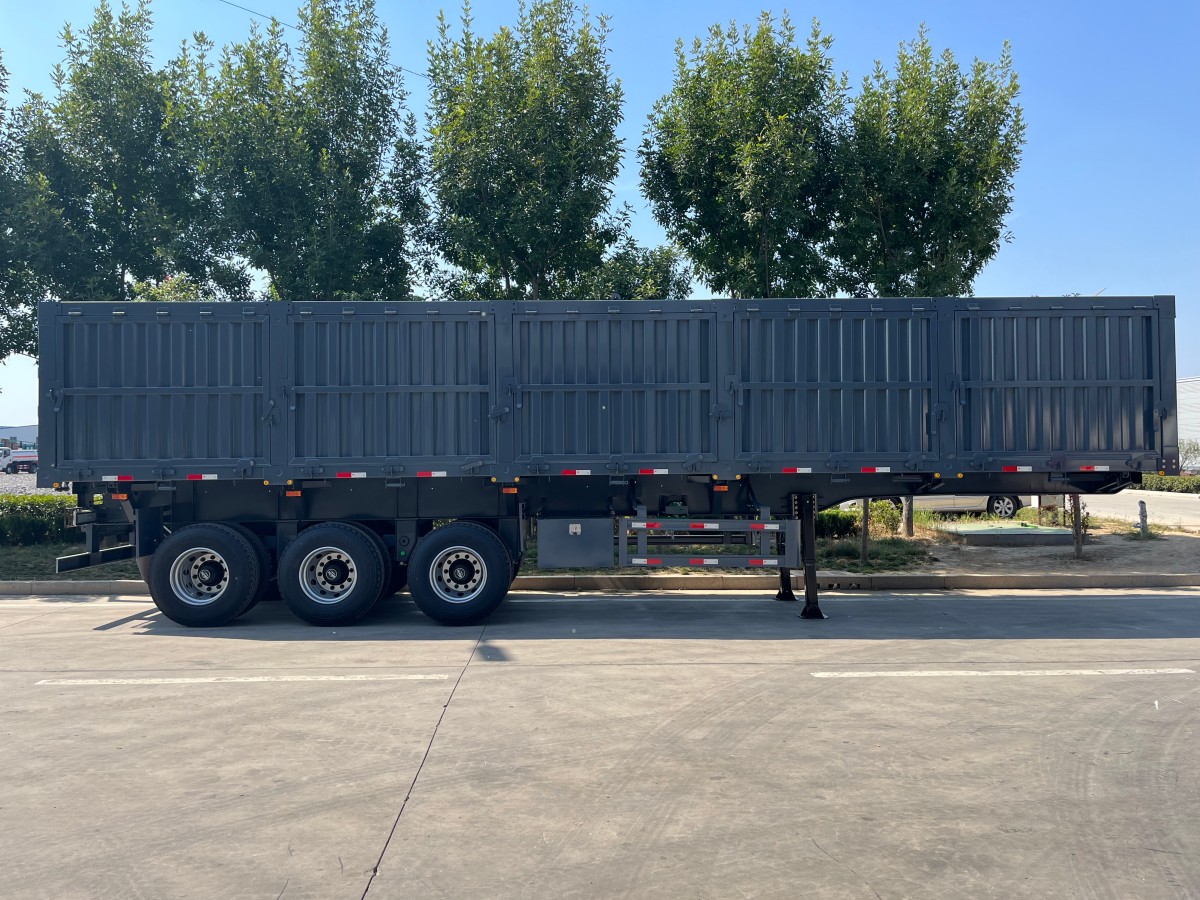

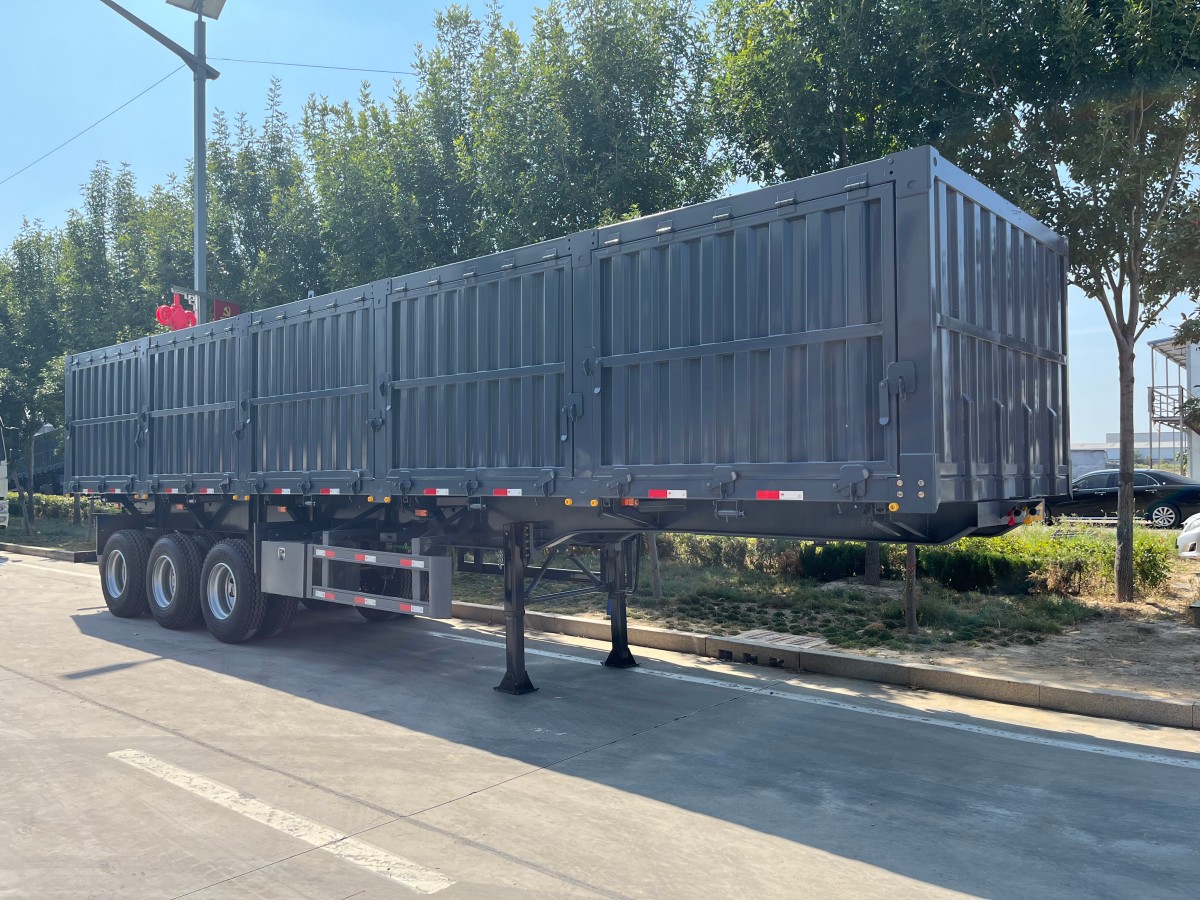

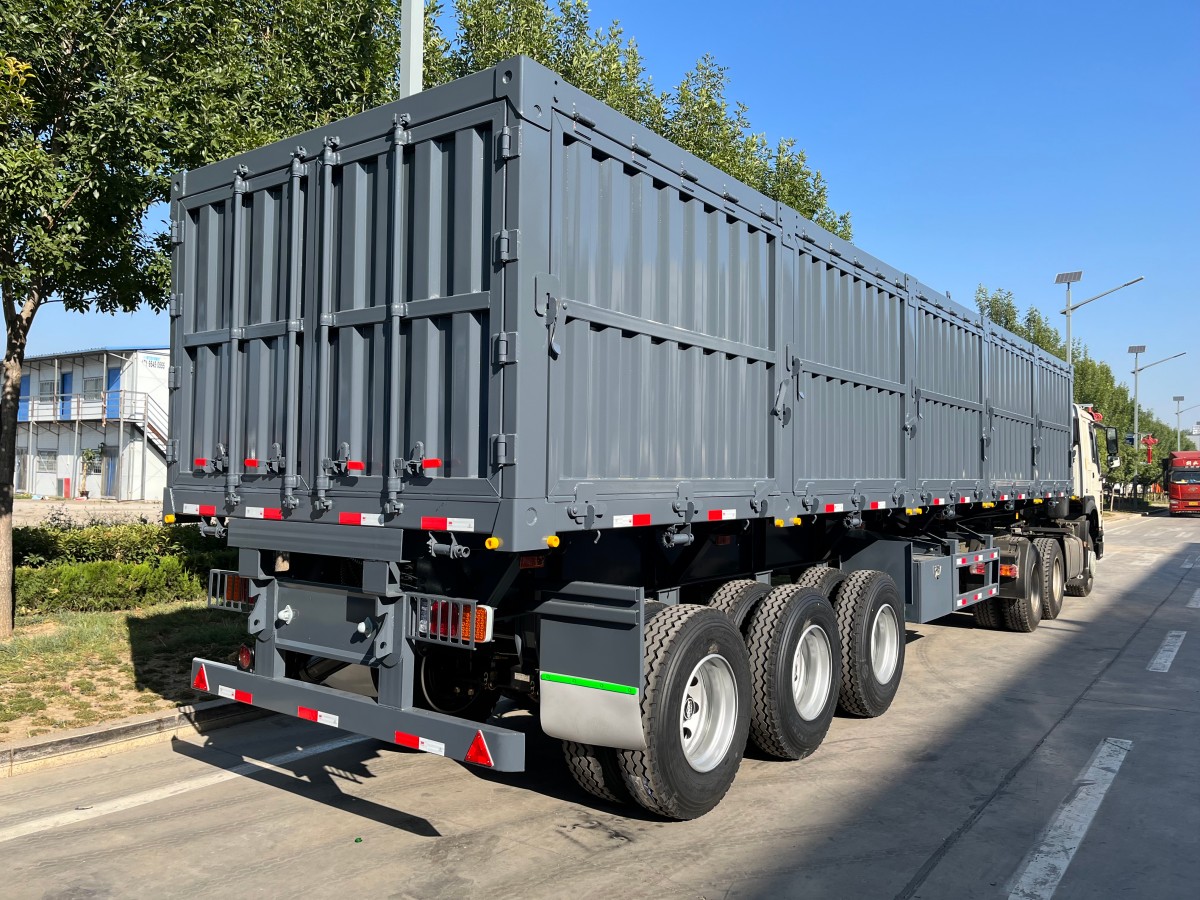

Side tipper semi trailer — hydraulic side dump, 30–50 ton, 3–4 axles.
Share with friends
Contact Us
Side tipper semi trailer (侧翻半挂车) manufactured by Shandong Shuyue Vehicle. Hydraulic side tipping for bulk cargo discharge in confined spaces. Reinforced body for aggregate and mining transport.
Technical Specifications
| Parameter | Specification |
|---|---|
| Overall Dimension (mm) | 11000 / 11500 × 2500 × 3050 |
| Volume Capacity | 37 m³ / 45 m³ / 60 m³ |
| Loading Capacity | Up to 80T |
| Tare Weight | 8 – 8.5T |
| Tipping Type | Side tip (full HYVA hydraulic lifting cylinder set) |
| Side Wall | Q235 steel, 5-8mm thickness |
| Bottom Plate | Q235 steel, 5-8mm thickness |
| Lifting System | Full set HYVA hydraulic lifting cylinder |
| Main Beam | Height 500mm, upper plate 16mm, middle plate 8mm (double+three plates) |
| Axle | 13T / 16T / 20T BPW or FUWA, 3 / 4 axles |
| Tire | 12R22.5 / 11.00R20 / 11.00-20, 12 pieces |
| Rim | 9.00-22.5 / 8.00-20 / 8.5-20 |
| Landing Gear | Two-speed, manual operating, JOST brand |
| King Pin | 2″ (50mm) or 3.5″ (90mm) JOST |
| Suspension | Mechanical / Air suspension |
| Leaf Spring | 8/8/8 or 10/10/10 pcs (90mm × 13mm) |
| Brake System | WABCO RE6 replay valve, T30/30+T30 spring brake |
| ABS | WABCO / KORMEE optional |
| Electrical System | LED, 24V, 7 ways receptacle |
| Painting | Sand-blasting, primer + 2 finish coats |
Application: Aggregate transport, mining materials, sand, gravel, coal, ore. Side tipping useful when rear access is blocked or in confined tipping zones.
Why Choose Shandong Shuyue Vehicle?
- 20+ years of trailer manufacturing experience in Liangshan — China’s largest special vehicle industry cluster
- Direct factory pricing — FOB Qingdao / Lianyungang / Tianjin
- Custom specifications available (dimensions, axles, capacity, color)
- CE / ISO9001 / GCC certification ready
- OEM / ODM service for distributors and fleet operators
- Pre-shipment inspection by SGS / BV / customer-appointed third party
- Spare parts supply and after-sales service
Order Process
- Inquiry with specifications (dimensions, payload, axle count, material)
- Quotation with technical drawing within 12 hours
- 30% deposit by T/T
- Production (25–35 days depending on model and quantity)
- Pre-shipment inspection and balance payment
- Shipping via FCL / Bulk / Ro-Ro to your destination port
