Grain Tipper Semi Trailer (粮食半挂车)
Grain tipper semi trailer — hydraulic rear dump, 40–60m³, aluminum or steel body.
Share with friends
Contact Us

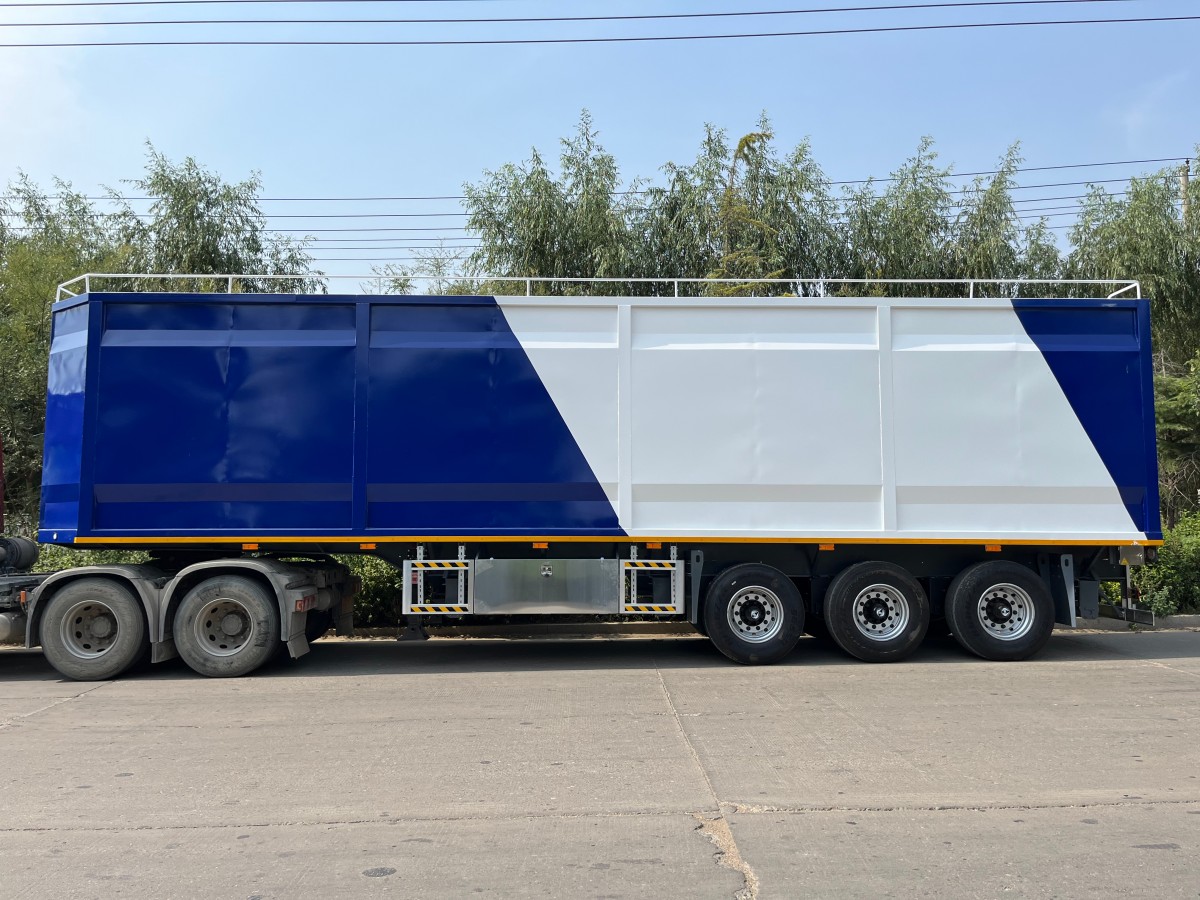

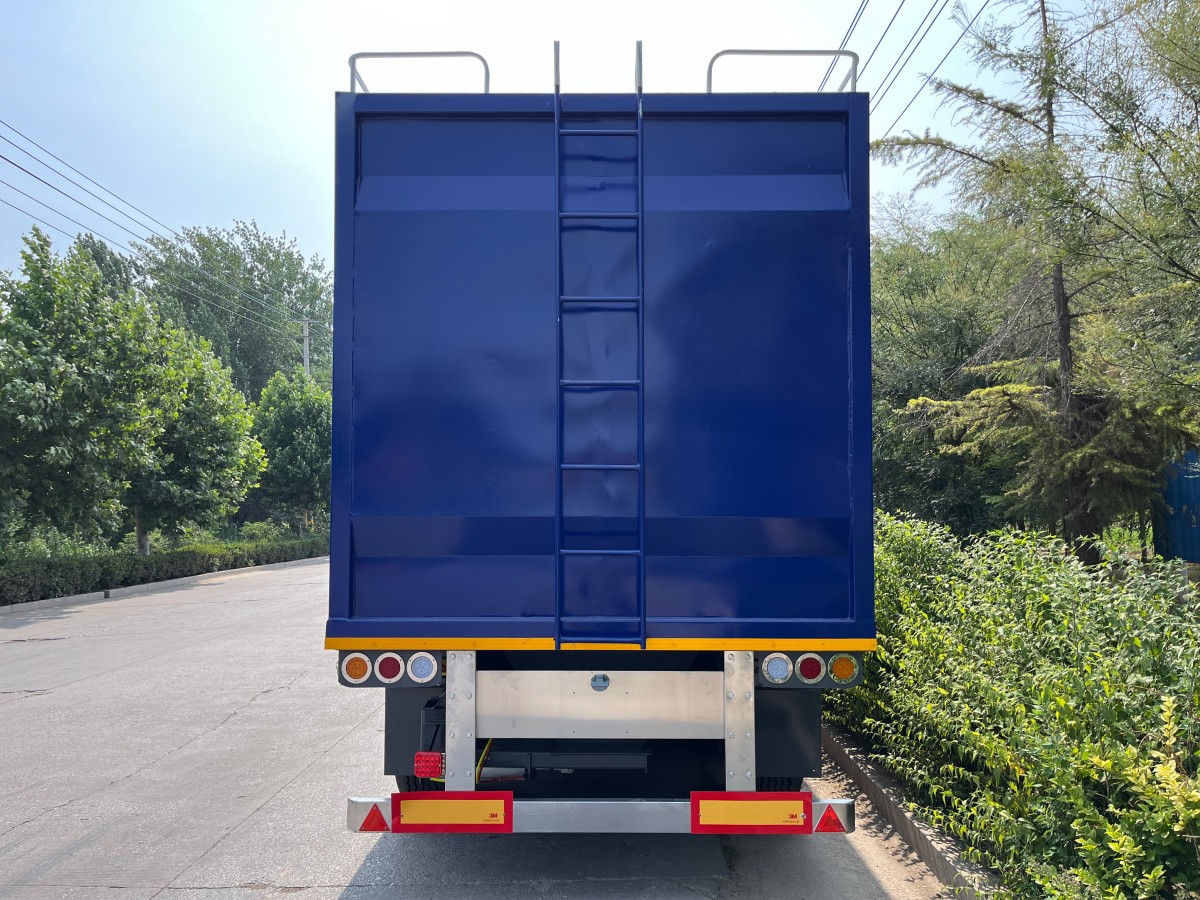

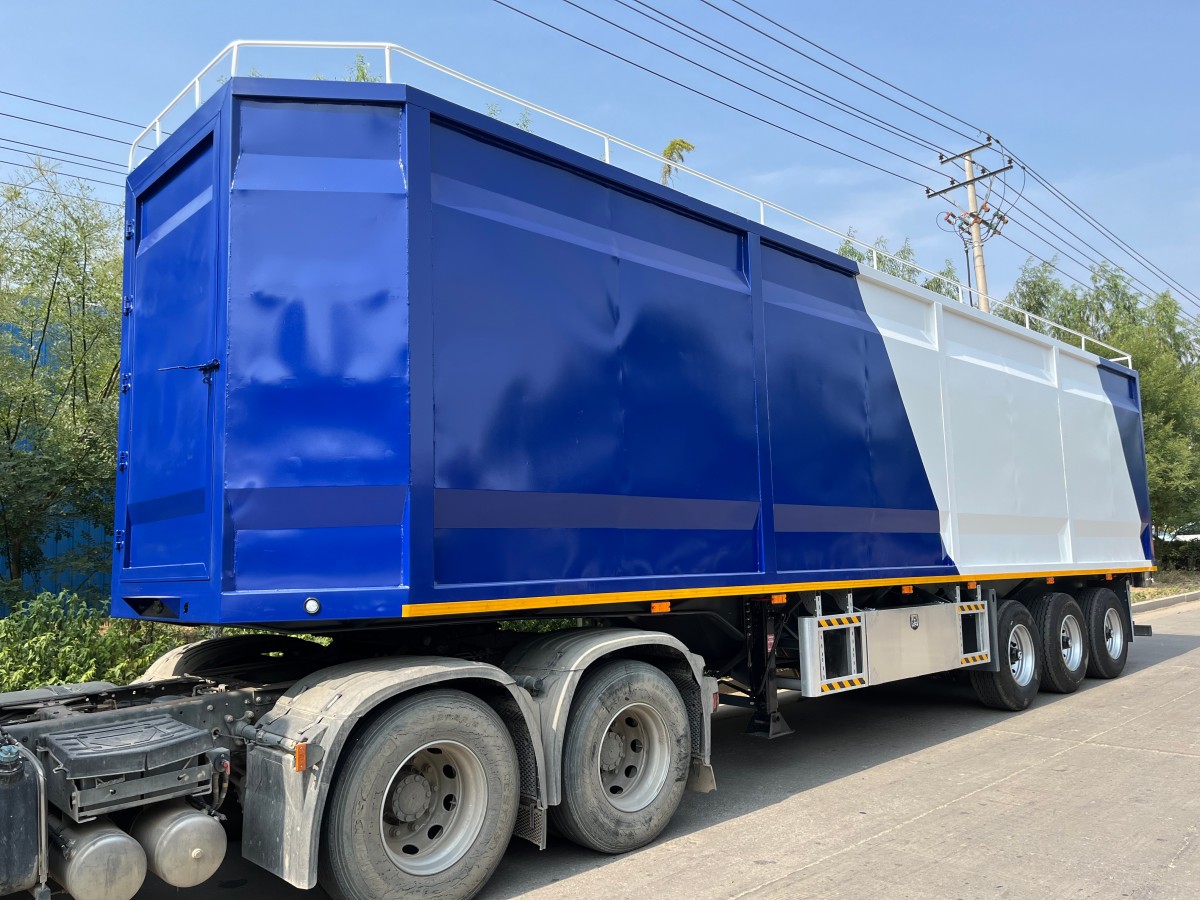

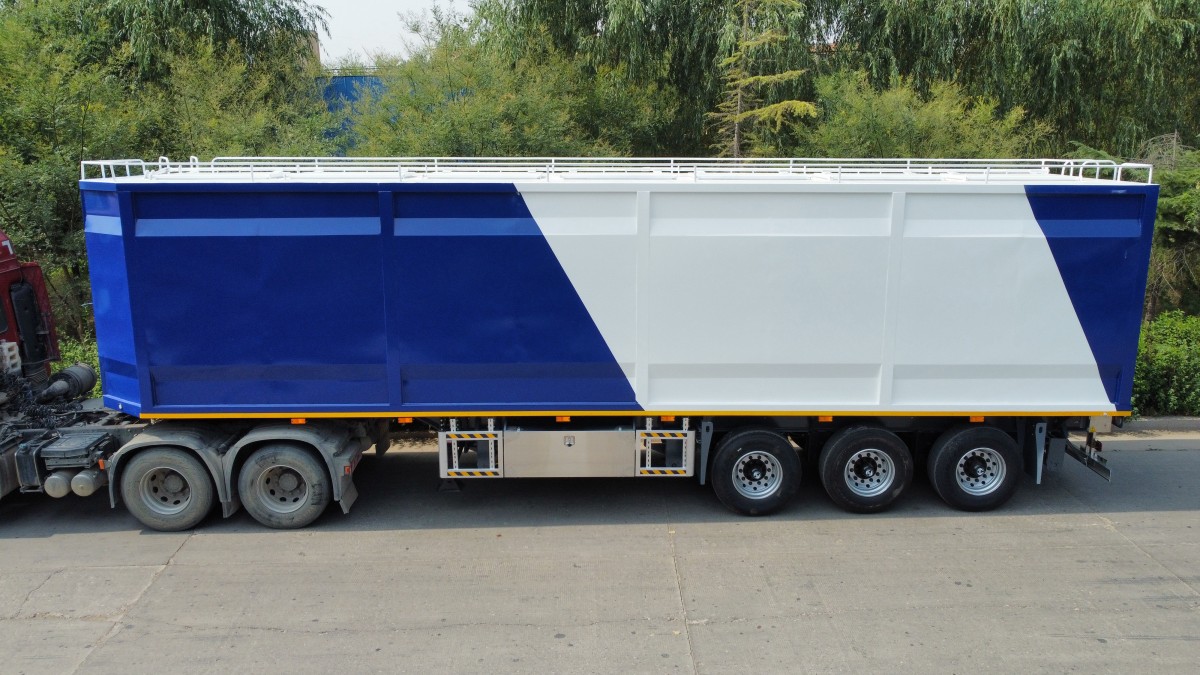

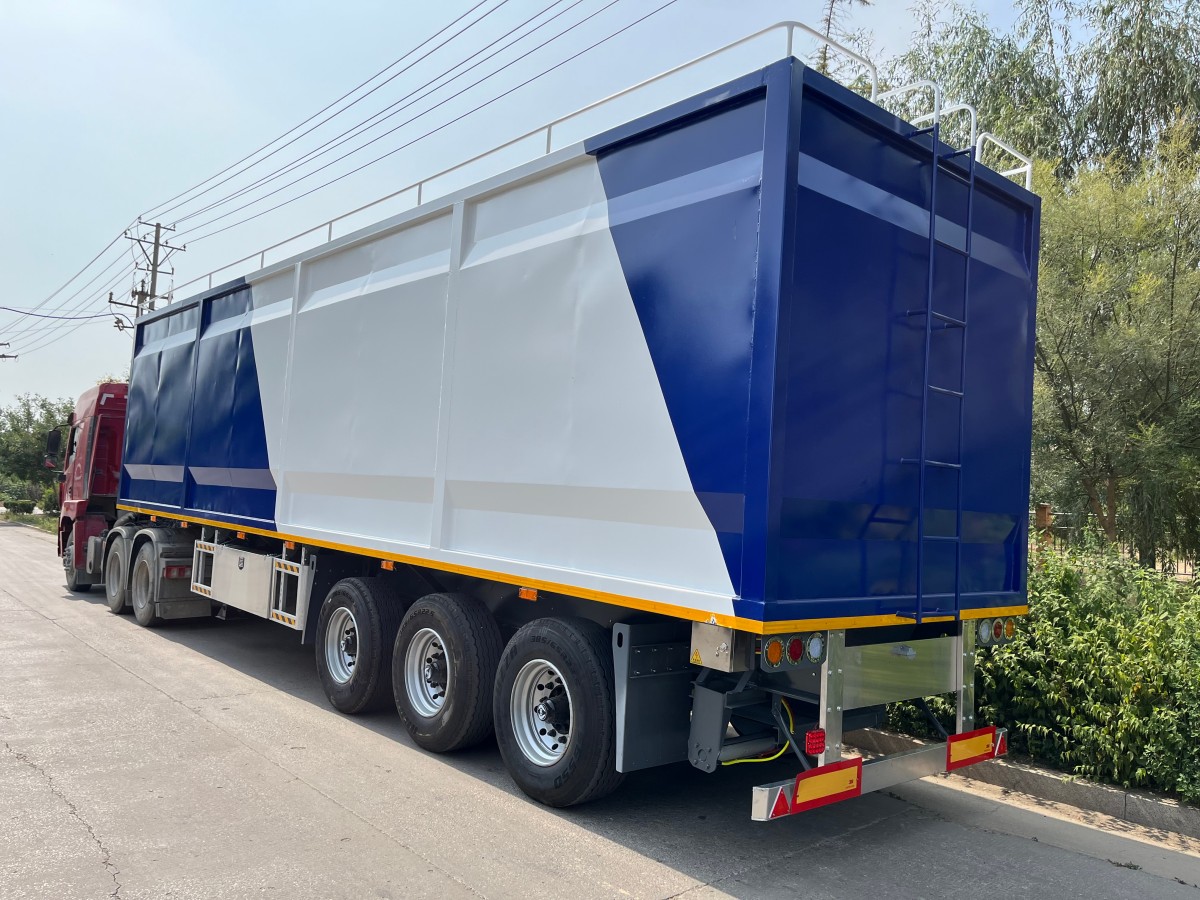

Grain tipper semi trailer (粮食半挂车) manufactured by Shandong Shuyue Vehicle. Hydraulic rear tipper for bulk agricultural products including grain, rice, wheat, corn, soybean, and fertilizer. Aluminum alloy or steel body options for weight-sensitive operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Overall Dimension (mm) | 10500 × 2500 × 3600 (customizable) |
| Volume Capacity | 40 m³, 50 m³, 60 m³ |
| Loading Capacity | 40T, 50T, 60T |
| Body Material | Aluminum alloy (5mm) / Q345B steel (4-6mm) |
| Tipping System | Hydraulic rear tipper, HYVA cylinder |
| Main Beam | Q345B steel, height 500mm, plate thickness 8-16mm |
| Axle | 13T / 16T BPW or FUWA, 3 axles |
| Tire | 12R22.5, 12 pieces |
| Rim | 9.00-22.5 |
| Suspension | Mechanical / Air suspension |
| Leaf Spring | 10 layers (90mm × 13mm × 10pcs) |
| King Pin | 50# or 90# JOST |
| Landing Gear | 28T JOST |
| Brake System | Dual-line air brake, WABCO |
| Brake Chamber | 6 sets |
| Top Cover | Manual roll tarp / Electric roll tarp (optional) |
| Electrical System | 24V, 7-pin socket, LED |
| Painting | Sand-blasting, primer + 2 finish coats |
Application: Bulk grain transport (wheat, rice, corn, soybean), fertilizer, animal feed, sugar, flour. Rear tipping for fast discharge at silos and storage facilities.
Why Choose Shandong Shuyue Vehicle?
- 20+ years of trailer manufacturing experience in Liangshan — China’s largest special vehicle industry cluster
- Direct factory pricing — FOB Qingdao / Lianyungang / Tianjin
- Custom specifications available (dimensions, axles, capacity, color)
- CE / ISO9001 / GCC certification ready
- OEM / ODM service for distributors and fleet operators
- Pre-shipment inspection by SGS / BV / customer-appointed third party
- Spare parts supply and after-sales service
Order Process
- Inquiry with specifications (dimensions, payload, axle count, material)
- Quotation with technical drawing within 12 hours
- 30% deposit by T/T
- Production (25–35 days depending on model and quantity)
- Pre-shipment inspection and balance payment
- Shipping via FCL / Bulk / Ro-Ro to your destination port
